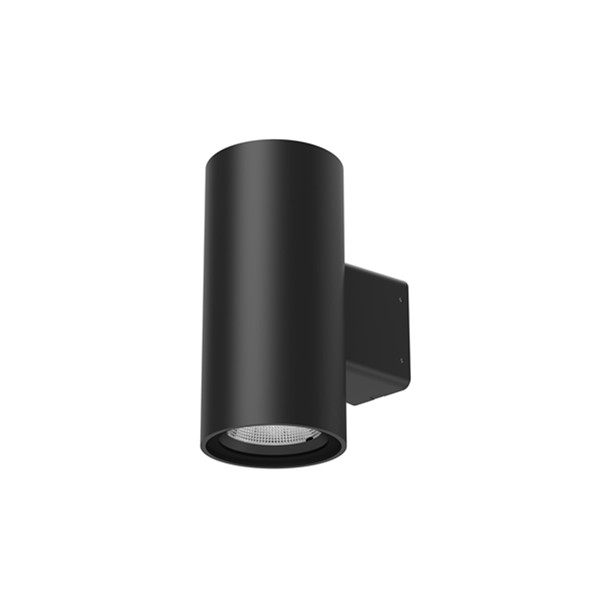

Wall Light

Fortiva

Fortiva 1 Fortiva
Fortiva 1 Fortiva 2
  • CE
  • Class I
  • LM80
  • IK08
  • IP66
  • Ta: +50°C

Operating and Electrical

IEC protection class
Class I
Input voltage
220-240 VAC
Mains frequency
50/60 Hz
Power factor
>0.50
Wattage
10W / 15W / 20W / 25W
Operating mode
Inbuilt driver
Control options
Static / DALI

Photometry

Light source
COB LED
Color temperature
3000 K / 4000 K
Color rendering index
>80 Ra
Lumens
800 lm / 1,200 lm / 1,600 lm / 2,000 lm
Beam angle
15° / 24° / 38°
LED life time
>50,000hrs

Materials and Finish

Body
Die-cast aluminum
Diffuser
Tempered glass
Body finish
RAL 9005

Installation and Application

Installation
Surface
IP Rating
IP66
IK Rating
IK08
Ambient temperature range
0 °C to +50 °C

Standard Variant

Product Watt Lumen Efficacy CCT Beam Angle Control
FRT1 10 800 80 4000 38° Static
FRT1 15 1200 80 4000 38° Static
FRT1 20 1600 80 4000 38° Static
FRT1 25 2000 80 4000 38° Static

Ordering Code

Code:
