Uplight

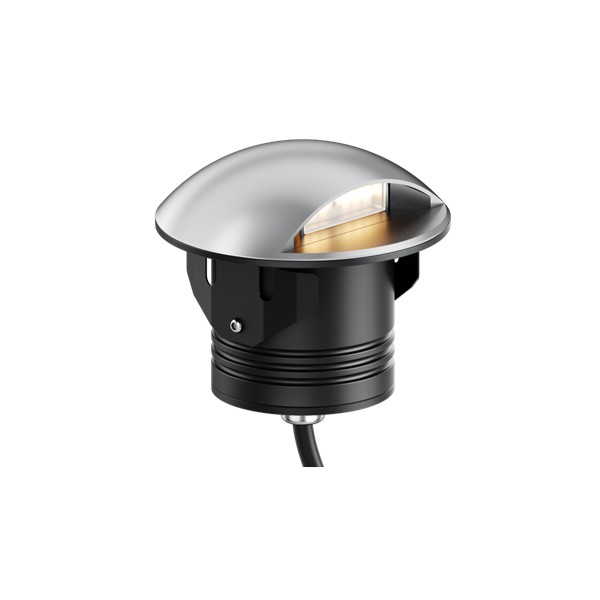

Dune
Dune 60
Dune 100
- CE
- Class I
- LM80
- IP67
- IP10
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 220-240 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.50
- Wattage
- 3W
- Operating mode
- Inbuilt driver
- Control options
- Static
Photometry
- Light source
- SMD LED
- Color temperature
- 3000 K / 4000 K
- Color rendering index
- >80 Ra
- Lumens
- 90 lm
- Number of beams
- 1 / 2 / 3 / 4
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Diffuser
- Tempered glass
Installation and Application
- Installation
- Inground recessed
- IP Rating
- IP67
- IK Rating
- IK10
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beams | |
|---|---|---|---|---|---|---|
| DUN60 | 3 | 90 | 30 | 3000 | B2 |
Ordering Code
Code:
- CE
- Class I
- LM80
- IP67
- IP10
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 220-240 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.50
- Wattage
- 8W
- Operating mode
- Inbuilt driver
- Control options
- Static
Photometry
- Light source
- SMD LED
- Color temperature
- 3000 K / 4000 K
- Color rendering index
- >80 Ra
- Lumens
- 280 lm
- Number of beams
- 1 / 2 / 3 / 4
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Diffuser
- Tempered glass
Installation and Application
- Installation
- Inground recessed
- IP Rating
- IP67
- IK Rating
- IK10
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beams | |
|---|---|---|---|---|---|---|
| DUN100 | 8 | 280 | 35 | 3000 | B4 |
Ordering Code
Code:
