Uplight
Bader Mini.
Bader Mini 38

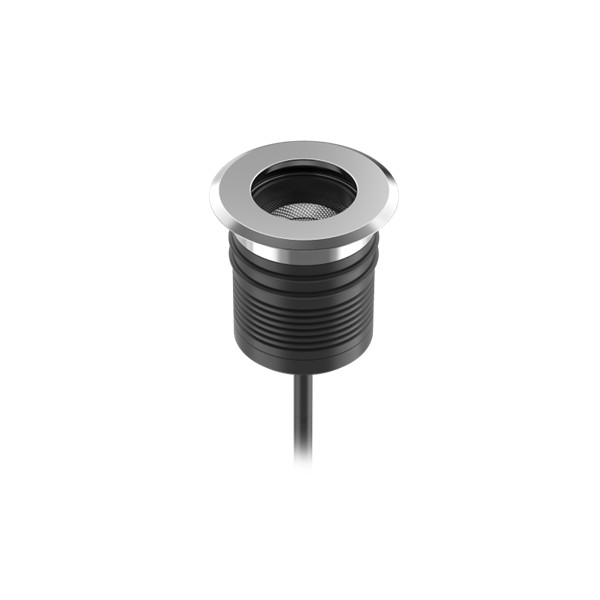

Bader Mini 52

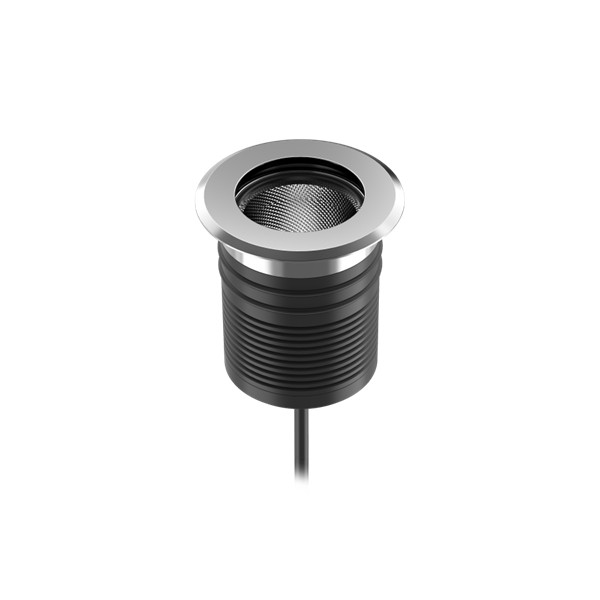

Bader Mini 80

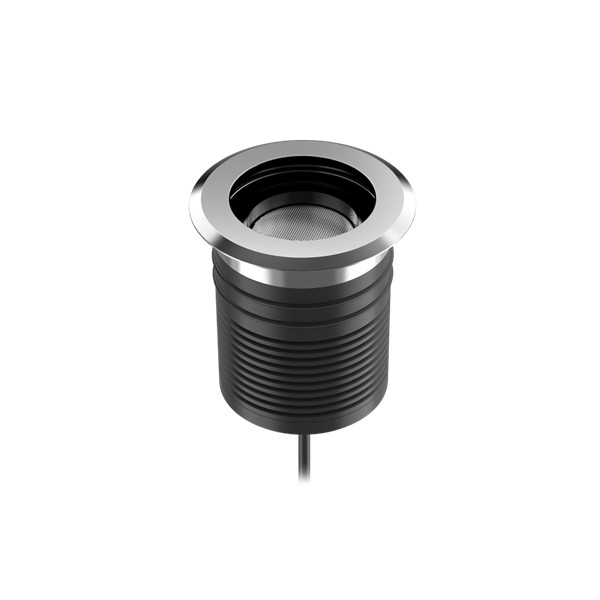

Bader Mini 100
- CE
- Class I
- LM80
- IP67
- IK10
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 220-240 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.50
- Wattage
- 1W
- Operating mode
- Inbuilt driver
- Control options
- Static
Photometry
- Light source
- COB LED
- Color temperature
- 3000 K / 4000 K
- Color rendering index
- >80 Ra
- Lumens
- 80 lm
- Beam angle
- 12° / 25° / 40°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Diffuser
- Tempered glass
- Trim
- Stainless steel 316
Installation and Application
- Installation
- Inground recessed
- IP Rating
- IP67
- IK Rating
- IK10
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | |
|---|---|---|---|---|---|---|
| BDRM38 | 1 | 80 | 80 | 3000 | 25° |
Ordering Code
Code:
- CE
- Class I
- LM80
- IP67
- IK10
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 220-240 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.50
- Wattage
- 3W / 5W
- Operating mode
- Inbuilt driver
- Control options
- Static
Photometry
- Light source
- COB LED
- Color temperature
- 3000 K / 4000 K
- Color rendering index
- >80 Ra
- Lumens
- 240 lm / 400 lm
- Beam angle
- 12° / 25° / 40°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Diffuser
- Tempered glass
- Trim
- Stainless steel 316
Installation and Application
- Installation
- Inground recessed
- IP Rating
- IP67
- IK Rating
- IK10
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | |
|---|---|---|---|---|---|---|
| BDRM52 | 3 | 240 | 80 | 3000 | 25° | |
| BDRM52 | 5 | 400 | 80 | 3000 | 25° |
Ordering Code
Code:
- CE
- Class I
- LM80
- IP67
- IK10
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 220-240 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.50
- Wattage
- 7W
- Operating mode
- Inbuilt driver
- Control options
- Static
Photometry
- Light source
- COB LED
- Color temperature
- 3000 K / 4000 K
- Color rendering index
- >80 Ra
- Lumens
- 560 lm
- Beam angle
- 15° / 30° / 40°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Diffuser
- Tempered glass
- Trim
- Stainless steel 316
Installation and Application
- Installation
- Inground recessed
- IP Rating
- IP67
- IK Rating
- IK10
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | |
|---|---|---|---|---|---|---|
| BDRM80 | 7 | 560 | 80 | 3000 | 30° |
Ordering Code
Code:
- CE
- Class I
- LM80
- IP67
- IK10
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 220-240 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.50
- Wattage
- 10W
- Operating mode
- Inbuilt driver
- Control options
- Static
Photometry
- Light source
- COB LED
- Color temperature
- 3000 K / 4000 K
- Color rendering index
- >80 Ra
- Lumens
- 800 lm
- Beam angle
- 12° / 25° / 40°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Diffuser
- Tempered glass
- Trim
- Stainless steel 316
Installation and Application
- Installation
- Inground recessed
- IP Rating
- IP67
- IK Rating
- IK10
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | |
|---|---|---|---|---|---|---|
| BDRM100 | 10 | 800 | 80 | 3000 | 25° |
Ordering Code
Code:
