Floodlight
Aura
Aura 2

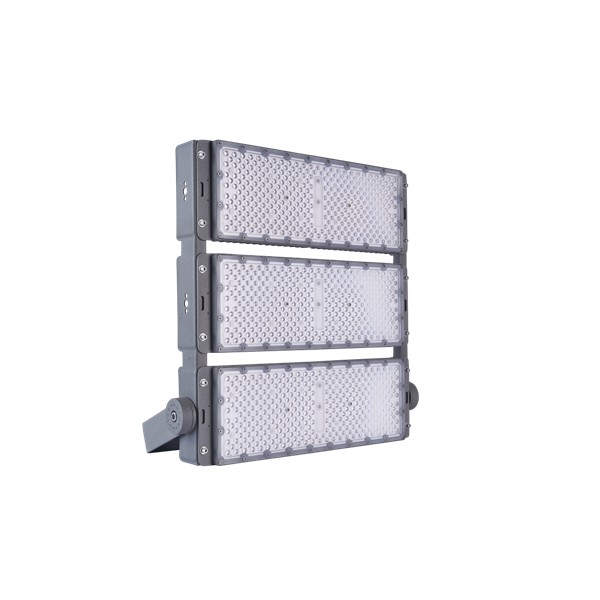

Aura 3

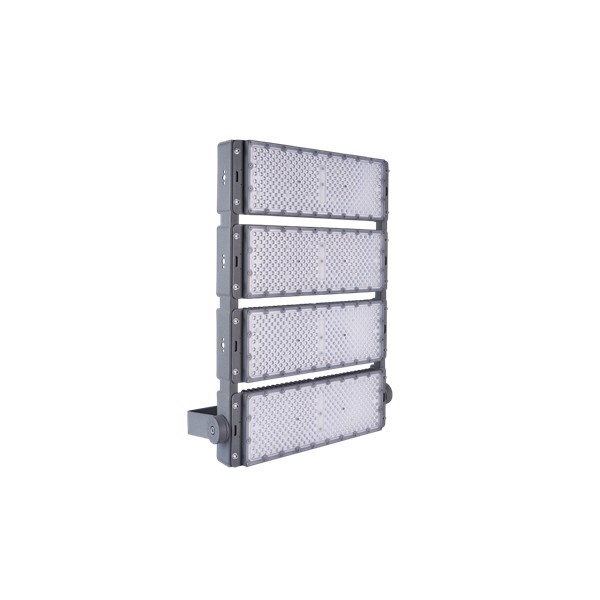

Aura 4
- Class I
- CB
- LM79
- LM80
- IP66
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 100-305 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.90
- Wattage
- 300W / 400W
- Operating mode
- Inbuilt driver
- Control options
- Static / DALI
Photometry
- Light source
- LED module
- Color temperature
- 4000 K / 6500 K
- Color rendering index
- >70 Ra
- Lumens
- 46,500 lm / 62,000 lm
- Beam angle
- 30° / 60°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Bracket
- Galvanized iron
- Diffuser
- Polycarbonate lens
- Body finish
- RAL 7035
Installation and Application
- Installation
- Surface
- IP Rating
- IP66
- IK Rating
- IK08
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | Control | |
|---|---|---|---|---|---|---|---|
| ARA2 | 300 | 46500 | 155 | 4000K | 30° | Static | |
| ARA2 | 400 | 62000 | 155 | 4000K | 30° | Static |
Ordering Code
Code:
- Class I
- CB
- LM79
- LM80
- IP66
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 100-305 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.90
- Wattage
- 500W / 600W
- Operating mode
- Inbuilt driver
- Control options
- Static / DALI
Photometry
- Light source
- LED module
- Color temperature
- 4000 K / 6500 K
- Color rendering index
- >70 Ra
- Lumens
- 77,500 lm / 93,000 lm
- Beam angle
- 30° / 60°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Bracket
- Galvanized iron
- Diffuser
- Polycarbonate lens
- Body finish
- RAL 7035
Installation and Application
- Installation
- Surface
- IP Rating
- IP66
- IK Rating
- IK08
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | Control | |
|---|---|---|---|---|---|---|---|
| ARA3 | 500 | 77500 | 155 | 4000K | 30° | Static | |
| ARA3 | 600 | 93000 | 155 | 4000K | 30° | Static |
Ordering Code
Code:
- Class I
- CB
- LM79
- LM80
- IP66
- Ta: +50°C
Operating and Electrical
- IEC protection class
- Class I
- Input voltage
- 100-305 VAC
- Mains frequency
- 50/60 Hz
- Power factor
- >0.90
- Wattage
- 700W / 800W
- Operating mode
- Inbuilt driver
- Control options
- Static / DALI
Photometry
- Light source
- LED module
- Color temperature
- 4000 K / 6500 K
- Color rendering index
- >70 Ra
- Lumens
- 108,500 lm / 124,000 lm
- Beam angle
- 30° / 60°
- LED life time
- >50,000hrs
Materials and Finish
- Body
- Die-cast aluminum
- Bracket
- Galvanized iron
- Diffuser
- Polycarbonate lens
- Body finish
- RAL 7035
Installation and Application
- Installation
- Surface
- IP Rating
- IP66
- IK Rating
- IK08
- Ambient temperature range
- 0 °C to +50 °C
Standard Variant
| Product | Watt | Lumen | Efficacy | CCT | Beam Angle | Control | |
|---|---|---|---|---|---|---|---|
| ARA4 | 700 | 108500 | 155 | 4000K | 30° | Static | |
| ARA4 | 800 | 124000 | 155 | 4000K | 30° | Static |
Ordering Code
Code:
